Authorised Distributors of HTC INSTRUMENTS

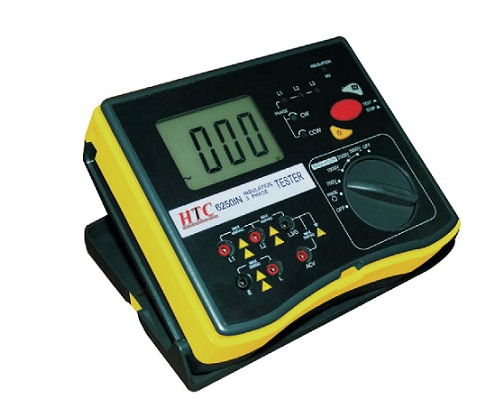

Features:
Function | Range | Accuracy | Resolution |
Insulation Resistance | 0.1MW~200GW | ±(3%+5) | 10MW |
Testing Voltage | 1000V,2500V,5000V | - | - |
AC Voltage (Test Frequency 50/60Hz) | 0~700V | ±(2.0%+5) | 1V |
Phase Sequence (Test Frequency 40~60Hz) | 100V~450V | - | - |

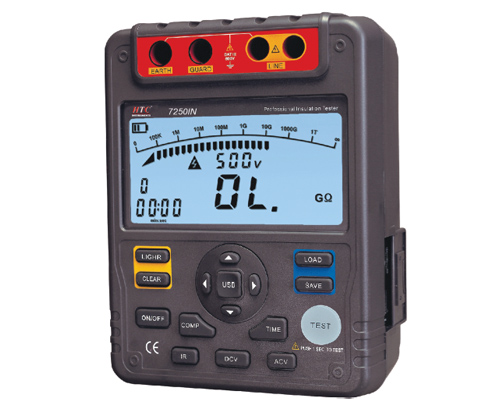

Features:
Output | Display Range | Open Circuit Voltage | Test Current | Accuracy | Short Circuit |
500V | 0.0mΩ - 20GΩ | DC 500V 0% - + 20% | 1mA-1.2A @500KΩ | 0.0MΩ-99.9MΩ±3%of rdg + 5 digits | Maximum than 20.mA |
- | - | - | - | 100MΩ-9.99GΩ±5%of rdg + 5 digits | - |
- | - | - | - | 10.0GΩ-20.0GΩ±10%of rdg + 5 digits | - |
- | - | - | - | 0.0MΩ-99.9MΩ±3%of rdg + 5 digits | - |
1000V | 0.0mΩ - 40GΩ | DC 1000V 0% - + 20% | 1mA-1.2A @1MΩ | 100MΩ-9.99GΩ±5%of rdg + 5 digits | Maximum than 20.mA |
- | - | - | - | 10.0GΩ-100GMΩ±5%of rdg + 5 digits | - |
- | - | - | - | 10.0GΩ-100GMΩ±5%of rdg + 5 digits | - |
- | - | - | - | 0.0MΩ-99.9MΩ±3%of rdg + 5 digits | - |
2500V | 0.0mΩ - 100GΩ | DC 2500V 0% - + 20% | 1mA-1.2A @2.5MΩ | 0.0MΩ-99.9MΩ±3%of rdg + 5 digits | Maximum than 20.mA |
