RH-Temp Data Logger

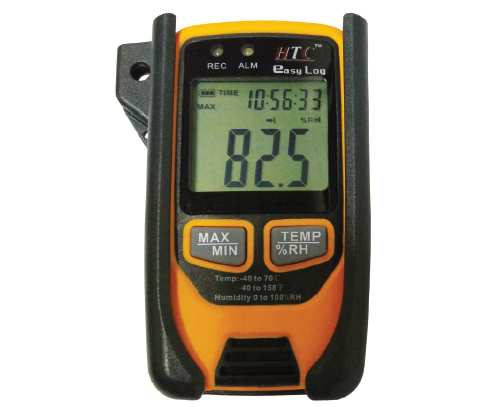

HTC Easy Log

RH-Temp Data Logger

Features:

Memory for 32,700 readings
LCD to show logging information easily
Free selectable measurement cycle from 1sec to 24 hrs
Battery life: more than 3 years (Under Ideal condition at 22Oc)
Display all status for Alarm and Record through 2 LED's
Alarm display if user-defined max/min values are exceeded
Analysis software used to view graphically or text mode for logging data USB Computer Interface (Advanced Software Program for all windows)

Technical Data:

Basic Function	RH	Temp.
Measuring Range	0˜100%RH	-40°C ˜ 70°C \| -40°F ˜ 158°F
Accuracy	0-35% & 80 ˜ 100%RH \| +5%RH 35% ˜ 80% RH \| +3%RH	-40°C ˜ 40°C \| 1.0C \| -40°F - 104°F \| 1.8°F -40°C ˜ 70°C \| 2.0C \| -104°F - 158°F \| 3.6°F
Resolution	0.1%RH
Memory	32,000 (16,000 each for temparature and Humidity)
Measuring Rate	1sec. to 24 hrs
Response Time	< 30 S

Special Function:

Memory

32700 readings

Power

306V ER 14250 X 1

Air Volume Unit

Standard Accessories :Holding Case, Safety Lock USB Cable with Software
Dimensions : 94.8(H) X 51.4(W) X 29.5(D)mm
