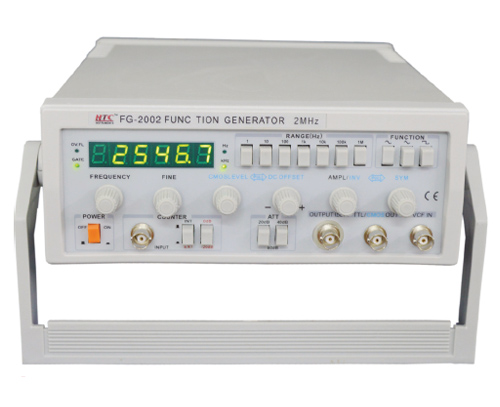

Features:
TTL/CMOS output | TTL pulse low level is no more than 0.4V, high level is no less than 3.5V | |||
Rising Time | no more than 100ns | |||
|
||||
Amplitude | no less than 20vp-p (Empty load) | |||
Attenuation | 20dB 40dB | |||
DC bias | 0-± 10V (Continously adjustable) | |||
Adjustment range of symmetry | 90:10 - 10:90 | |||
VCF Input | ||||
Input Voltage | 5V-0V ±10% | |||
Max Voltage Ratio | 1000:1 | |||
Sensitivity | 100m Vrms | |||
Max Input | 150V (AC + DC) with attenuator | |||
Input attenuation | 20dB | |||
Measurement error | ≤0.003% ±1 digit | |||
voltage | 220V ± 10% (110V ± 10%) | |||
Frequency | 50Hz± 2Hz (220V ± 10%) |

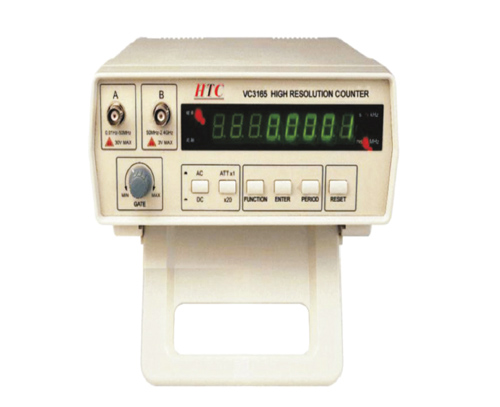

Features:
Frequency Range | 0.01Hz˜2.4GHz |
Accuracy | Time base error X Frequency + 1 Digit |
Cyclic Measurement Range | 0.5nS ˜ 10S |
Attenuation | 20dB |
Channel A (40MHz ˜ 2.4GHz) | Sensivity : 50m Vrms Input resistance : 50Ω Maximum Input : 3V |
Time Gate | 10ms ˜ 10s |
Input Impedance | 1MΩ |
Channel B (0.01Hz ˜ 40MHz) | Sensitivity : 30 Vrms Input resistance : 1MΩ ( <35pF ) Maximum Input : 30V |
