Earth Tester

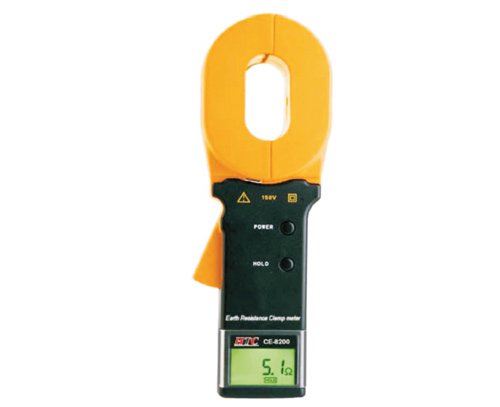

HTC CE-8200

Clamp Earth Tester

Features:

1999 Display
Large 3 ¾ (4000 Counts) LCD Display
Auto power Off
Conductor Size: 32 x65
Max/Min, Data Hold
Low battery indication
Overload protection
Double Insulation Protection Level
Spare 5.1 Test Ring, to detect Self Precision

Technical Data:

Basic Function	Range	Resolution	Best Accuracy
Resistance	0.010-0.099W	0.001W	±(1%+0.01W)
	0.10-0.99W	0.01W	±(1%+0.01W)
	1.0-49.9W	0.1W	±(1.5%+0.1W)
	50.0-99.5W	0.5W	±(2%+0.5W)
	100-199W	1W	±(3%+1W)
	200-395W	5W	±(6%+51W)
	400-590W	10W	±(10%+10W)
	600-1000W	20W	±(20%+20W)

Standard Accessories : Hard Carrying Case, Test Lead, Manual
Dimensions : 285(H) x 85(W) x 66(D)mm

HTC CE-8201

Clamp Earth Tester

Features:

0.01Ω High Accuracy for low resistance measurement
Data Logging up to 99 groups
Alarm Threshold setting from 1Ω to 100Ω
Leakage Current measurement from 0.1mA to 20A

Basic Functions	Range	Resolution	Basic Accuracy
Resistance	0.01 Ω ~ 0.999 Ω	0.001 Ω	±(1.5%+0.01Ω)
	1 Ω ~ 9.99 Ω	0.01 Ω	±(1.5%+0.1Ω)
	10 Ω ~ 99.9 Ω	0.1 Ω	±(2.0%+0.3Ω)
	100 Ω ~ 199.9 Ω	1 Ω	±(3.0%+1Ω)
	200 Ω ~ 400 Ω	5 Ω	±(6.0%+5Ω)
	400 Ω ~ 600 Ω	10 Ω	±(10%+10Ω)
	600 Ω ~ 1200 Ω	20 Ω	Approx 20%
Current	100mA	0.1mA	±(2.5%+1mA)
	300mA	0.3mA	±(2.5%+2mA)
	1A	0.001 A	±(2.5%+0.003A)
	3A	0.003 A	±(2.5%+0.01A)
	10A	0.01 A	±(2.5%+0.03A)
	20A	0.03 A	±(2.5%+0.05A)

Standard Accessories : Battery, Hard Carrying Case, Manual
Dimensions :275 (H) X 110 (W) X 54 (D) MM
